Key Features:
| Key Features | Description |
|---|---|
| Individual Air Flow Control | Allows personalized airflow direction from each outlet. |
| Fresh Air Intake Kit | Enables ventilation with fresh outdoor air. |
| Silver Ion Antibacterial Drain Pan | Prevents bacteria buildup for healthier air. |
| Night Quiet Operation | Operates at lower sound levels during the night. |
| Swing Pattern Selection | User-selectable swing modes for better air distribution. |
| Drain Pump Mechanism | Facilitates efficient drainage of condensation water. |
| Low Gas Pressure Detection | Alerts when refrigerant levels are low. |
| 360° Airflow | Ensures uniform cooling in all directions within the room. |
Specification:
| Parameter | Specification |
|---|---|
| Series | FCVFQ Series |
| Indoor Model No | FCVFQ140AV16 |
| Outdoor Model No | RZVFQ140AY16 |
| Power Supply Intake | Outdoor Unit |
| Cooling Capacity (kW) | 14.0 (6.2 ~ 15.5) |
| Cooling Capacity (Btu/h) | 47,769 (21,155 ~ 52,888) |
| Power Consumption (W) | 5,480 |
| Annual Power Consumption (kWh) | 2,971.47 |
| ISEER / ISEER Rank | 3.66 / Inverter 3 Star |
| Power Supply | 3 Phase, 400 V, 50 Hz |
| Operating Modes | Cool Mode, Fan Mode, Dry Mode |
| Timer | ON: 1–12 hoursOFF: 1–9 hours |
| Auto Restart | Yes |
Indoor Unit Specification:
| Parameter | Specification |
|---|---|
| Front Panel Colour | Ivory White |
| Indoor Dimensions (H x W x D) | 298 x 840 x 840 mm |

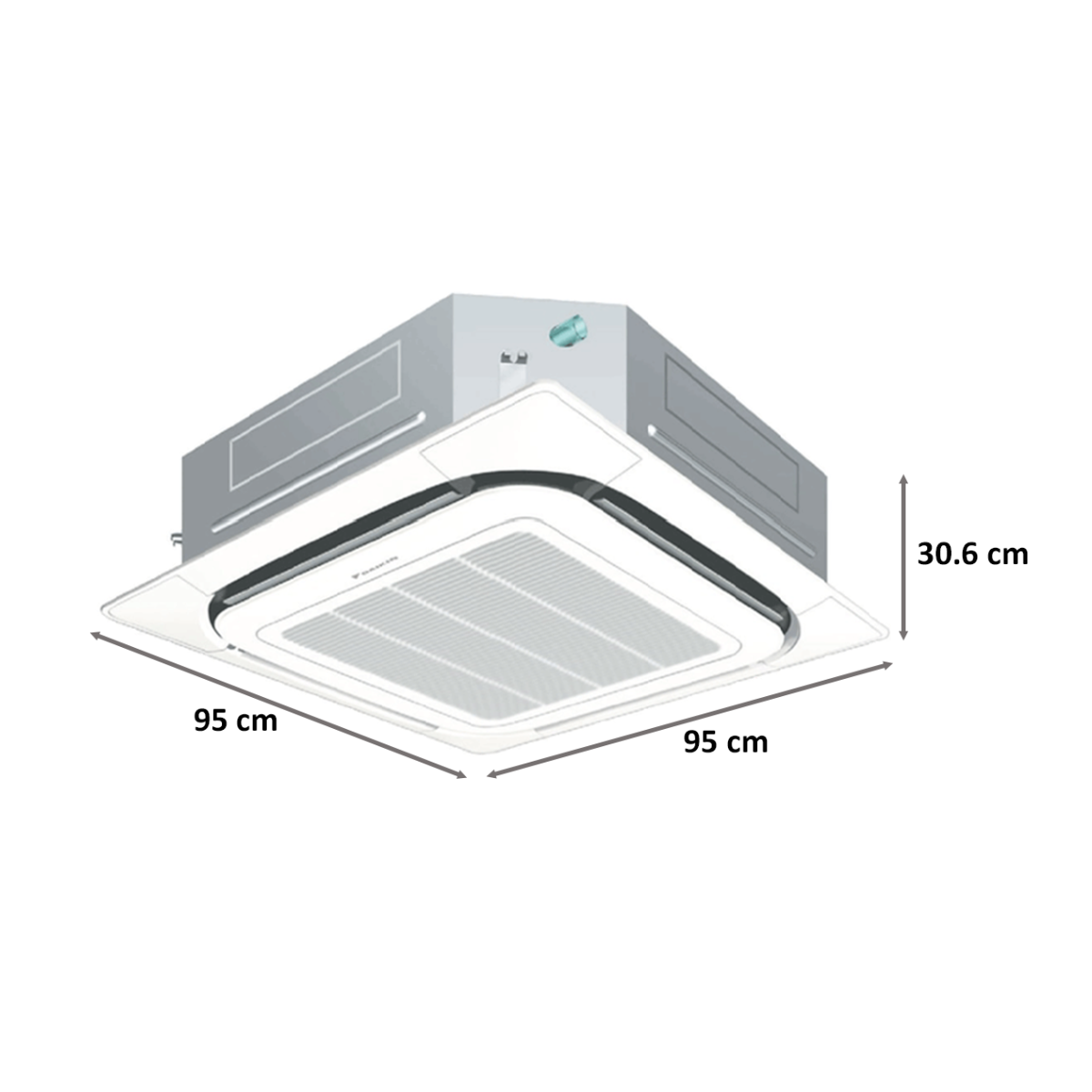

| Indoor Panel Dimensions (H x W x D) | 50 x 950 x 950 mm |
| Indoor Machine Weight | 25 kg |
| Indoor Panel Weight | 5.5 kg |
| Airflow Rate (m³/min) [H / HM / M / ML / L] | 36.5 / 33 / 29 / 25 / 21 |
| Airflow Rate (Cfm) [H / HM / M / ML / L] | 1,288 / 1,165 / 1,024 / 883 / 742 |
| Sound Levels (dB) [H / MH / M / ML / L / SL] | 48 / 45 / 42 / 38 / 34.5 |
Outdoor Unit Specification:
| Parameter | Specification |
|---|---|
| Casing Colour | Ivory White |
| Compressor Type | Hermetically Sealed Swing Type |
| Dimensions (H x W x D) | 990 x 940 x 320 mm |
| Machine Weight | 68 / 62 kg |
| Max. Interunit Piping Length | 30 m |
| Max. Installation Level Difference | 20 m |
| Chargeless Pipe Length | 10 m |
| Piping Connection (Gas / Liquid) | ∅15.88 / ∅9.52 mm (5/8″ ; 3/8″) |
| Operating Ambient Temperature Range (Cooling) | 19°C ~ 50°C (°CDB) |
| Sound Pressure Level | 55 / 57 dB(A) |
