Daikin 3.8 TON Non-Inverter 2 Star (3Phase) FCQF48 / RGVF48 / BYC048EAF6

₹133,600.00

Feature	Details
Model	Daikin FCQF48ARV16
Capacity	3.8 Ton
Type	Non Inverter Cassette AC
Energy Rating	2 Star
Sound Level	Superior Sound Level
Air Intake	Fresh Air Intake
Display	7-Segment Temperature Display
Airflow	Surround Airflow
Ducting Option	Branch Duct Connection
Sleep Mode	Good Sleep – Prevents excessive cooling during sleep
Child Lock	Disables all buttons except the Child Lock to prevent accidental changes

Specification	Details
Series	FCQF Series
Indoor Model No.	FCQF48ARV16
Outdoor Model No.	RGVF48BSY16
Power Supply Intake	Outdoor Unit
Cooling Capacity (kW)	13.36
Cooling Capacity (Btu/h)	45,586
Power Consumption (W)	4,200 (Rated Full/Half)
Annual Power Consumption (kWh)	NA
ISEER / ISEER Rank	NA / Non Inverter
Power Supply (Ph, V, Hz)	3 Phase, 415V, 50Hz
Modes	Cool Mode, Fan Mode, Dry Mode
Timer Functions	ON Timer: 1–12 hrsOFF Timer: 1–9 hrs
Auto Restart	Yes

Specification	Details
Front Panel Colour	White

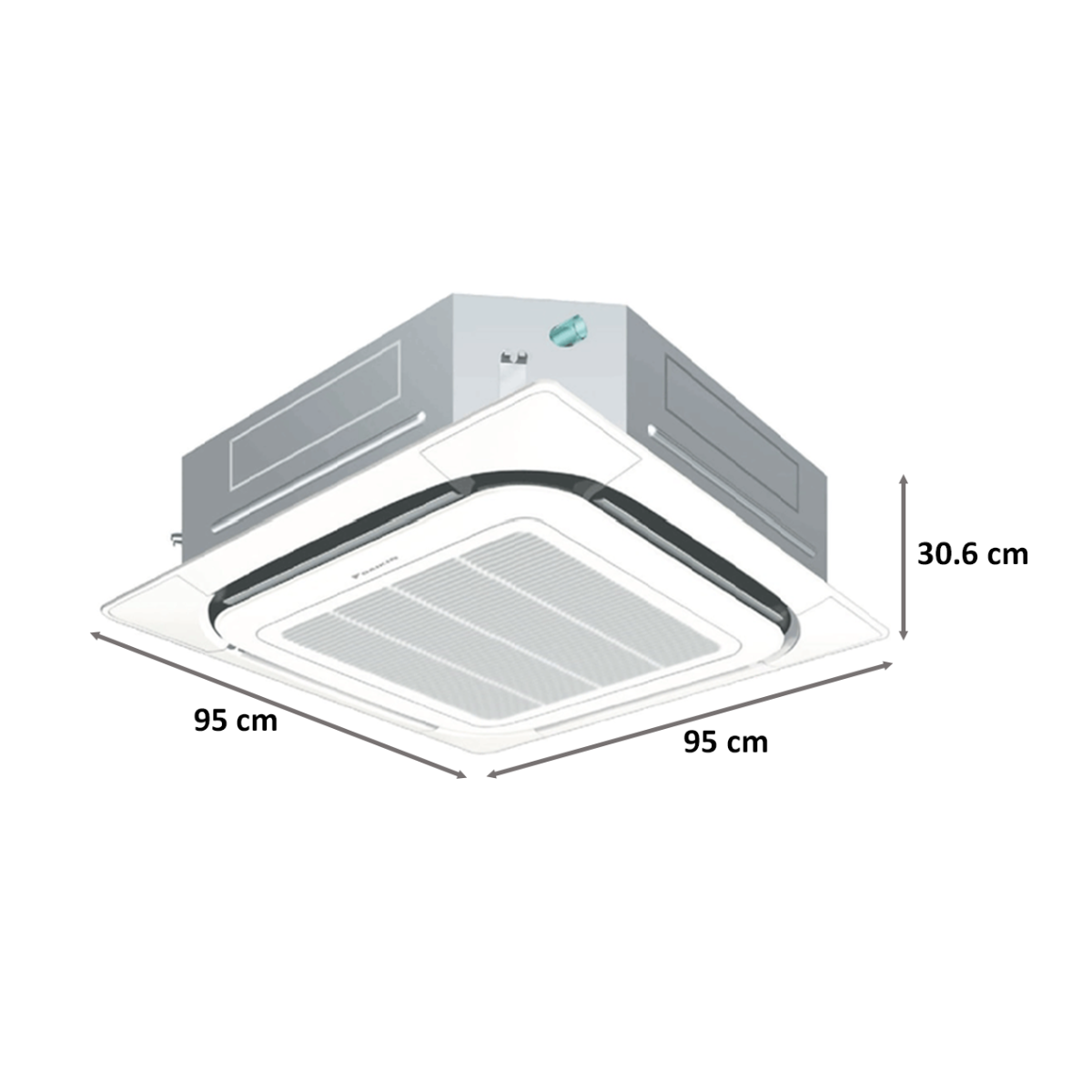

Indoor Dimensions (H x W x D)	298 x 840 x 840 mm
Indoor Panel Dimensions (H x W x D)	50 x 950 x 950 mm
Indoor Machine Weight	25 kg
Indoor Panel Weight	5.5 kg
Airflow Rate (H / HM / M / ML / L) m³/min (Cmm)	36.5 / 33 / 29 / 25 / 21
Airflow Rate (H / HM / M / ML / L) ft³/min (Cfm)	1,289 / 1,165 / 1,024 / 883 / 742
Sound Levels (H / MH / M / ML / L / SL)	46 / 43 / 40 / 36 / 32.5 dB

Specification	Details
Casing Colour	Ivory White
Compressor Type	Rotary
Refrigerant Type / Charge	R-32 / 2.07 kg (Charged for 7.5 m)
Dimensions (H x W x D)	990 x 940 x 320 mm
Machine Weight	74 kg
Outdoor Unit Sound Level	60 dB(A)
Standard Interunit Piping Length	7.5 m
Maximum Interunit Piping Length	30 m
Maximum Installation Level Difference	15 m
Piping Connection (Gas / Liquid)	∅15.5 / ∅9.5 mm (5/8″ ; 3/8″)
Operating Ambient Temp Range (Cooling Min ~ Max)	19°C ~ 48°C (°CDB)
