Model Name:
| Component | Model |
|---|---|
| Indoor Unit (IDU) | FTKL90UV16L |
| Outdoor Unit (ODU) | RKL90UV16L |
General Specifications:
| Specification | Unit | Value |
|---|---|---|
| Star Rating* | — | 4 Star |
| Rated Power Supply | — | 1φ 50Hz 230V (220–240V) |
| Power Supply Intake | — | Outdoor Unit |
| Rated Cooling Capacity (Full/Half) | kW | 9.15 / 4.575 (2.9–9.5) |
| Rated Cooling Capacity (Full/Half) | Btu/h | 31220 / 15610 (8190–32910) |
| Rated Power Consumption (Full/Half) | W | 2580 / 838 (380–3500) |
| Rated Annual Power Consumption | kWh | 1476.47 |
| ISEER | Wh/Wh | 4.8 |
| Voltage Range (Stabilizer Inside) | V | 130–285 |
| Operating Current | A | 11.8 |

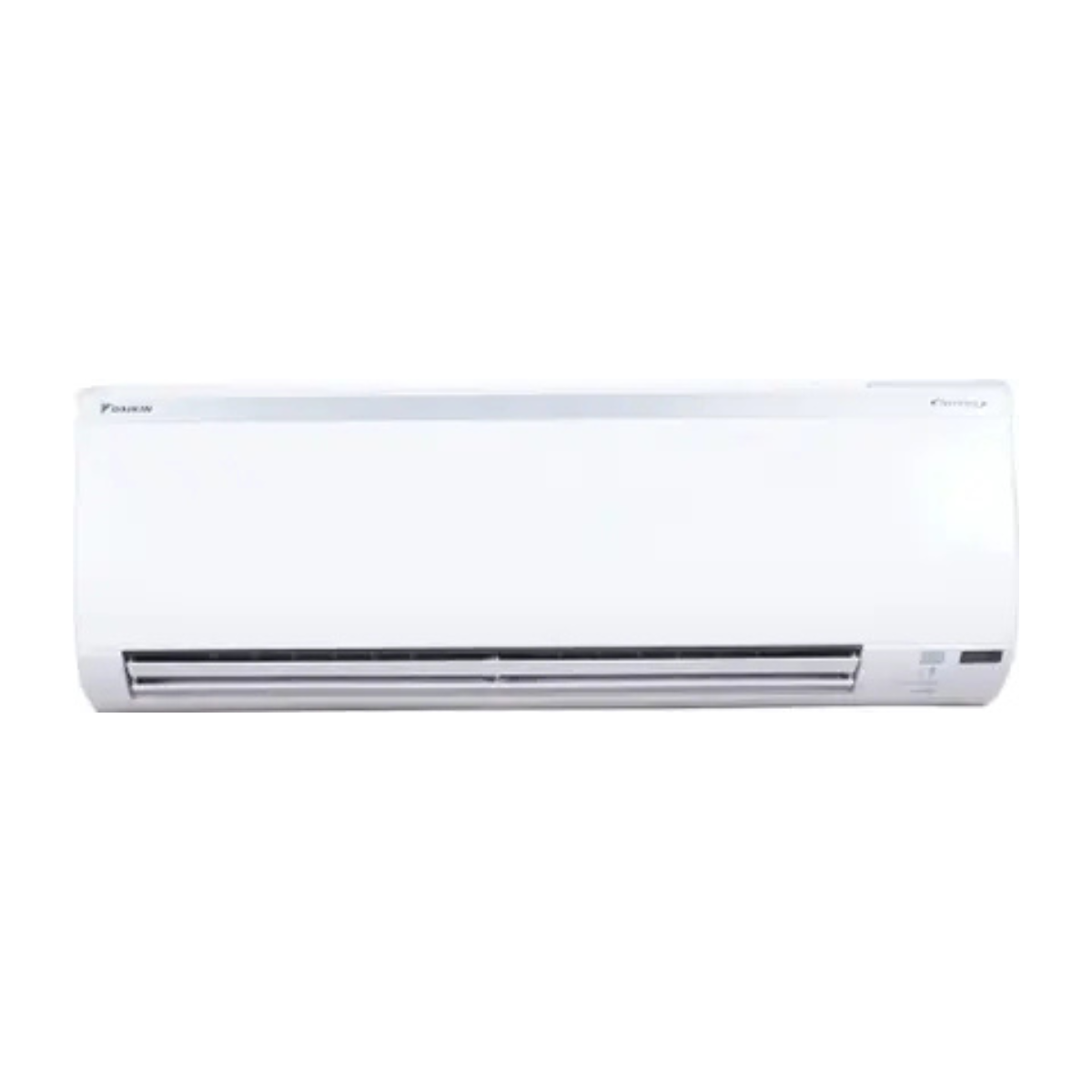

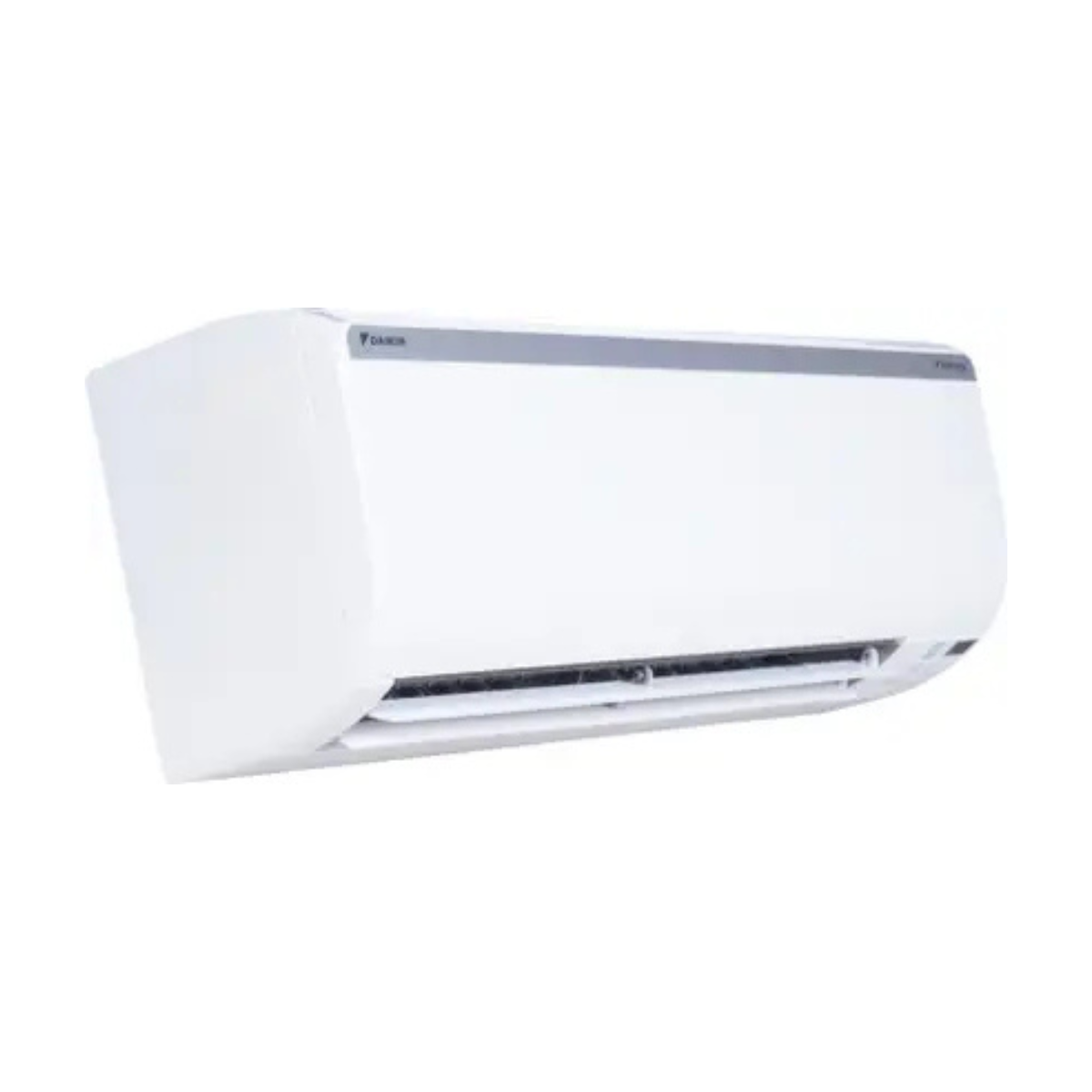

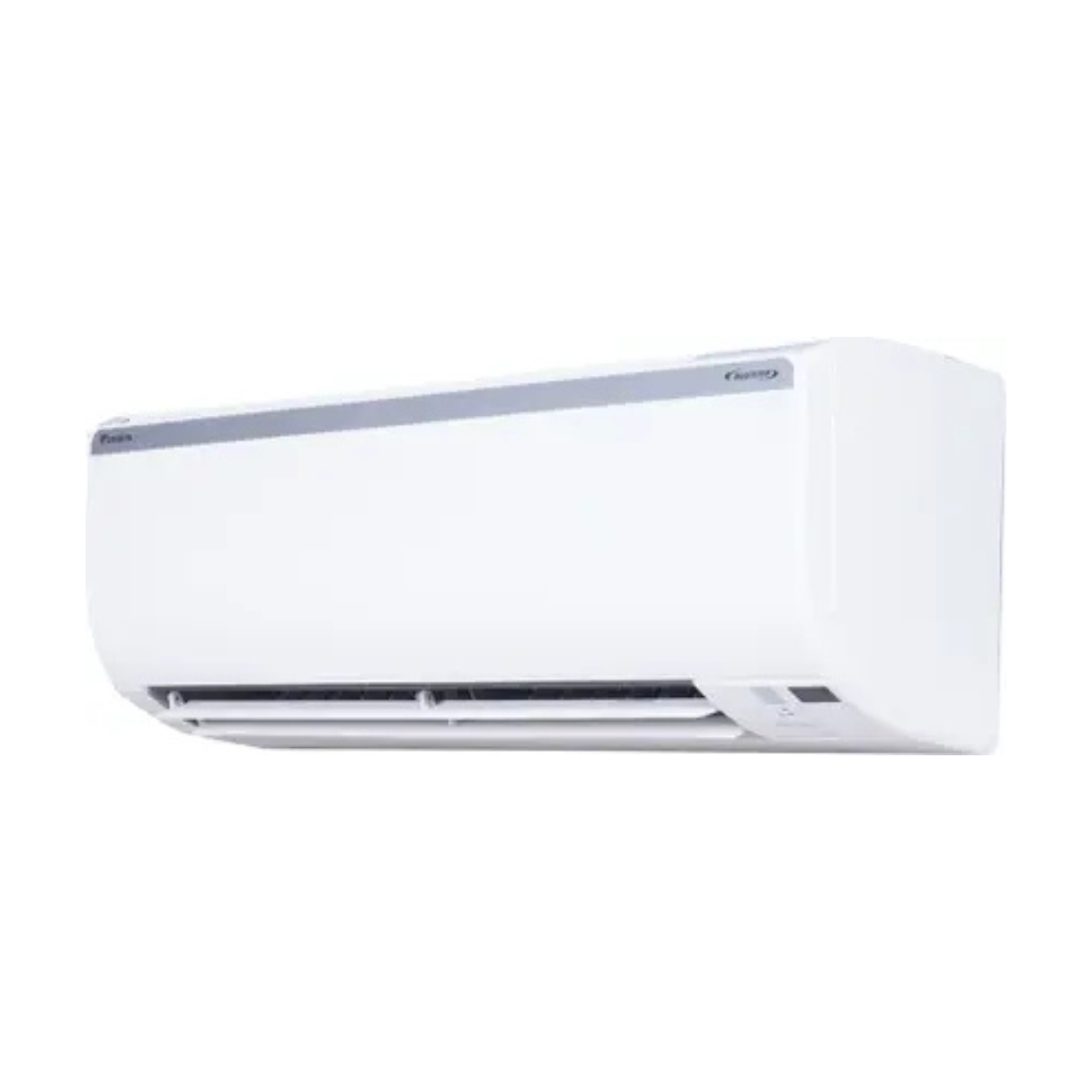

Indoor Unit (IDU):
| Specification | Unit | Value |
|---|---|---|
| Panel Colour | — | White |
| Dimensions (HxWxD) | mm | 325 x 1220 x 278 |
| Package Dimensions (HxWxD) | mm | 412 x 1325 x 410 |
| Net Weight (Gross Weight) | kg | 19.5 (24) |
| Airflow Rate | cfm / cmm | 887 / 25.1 (23) |
| Operation Sound (H/MH/M/ML/L/SL) | dBA | 51 / 49 / 46 / 44 / 42 / 37 |

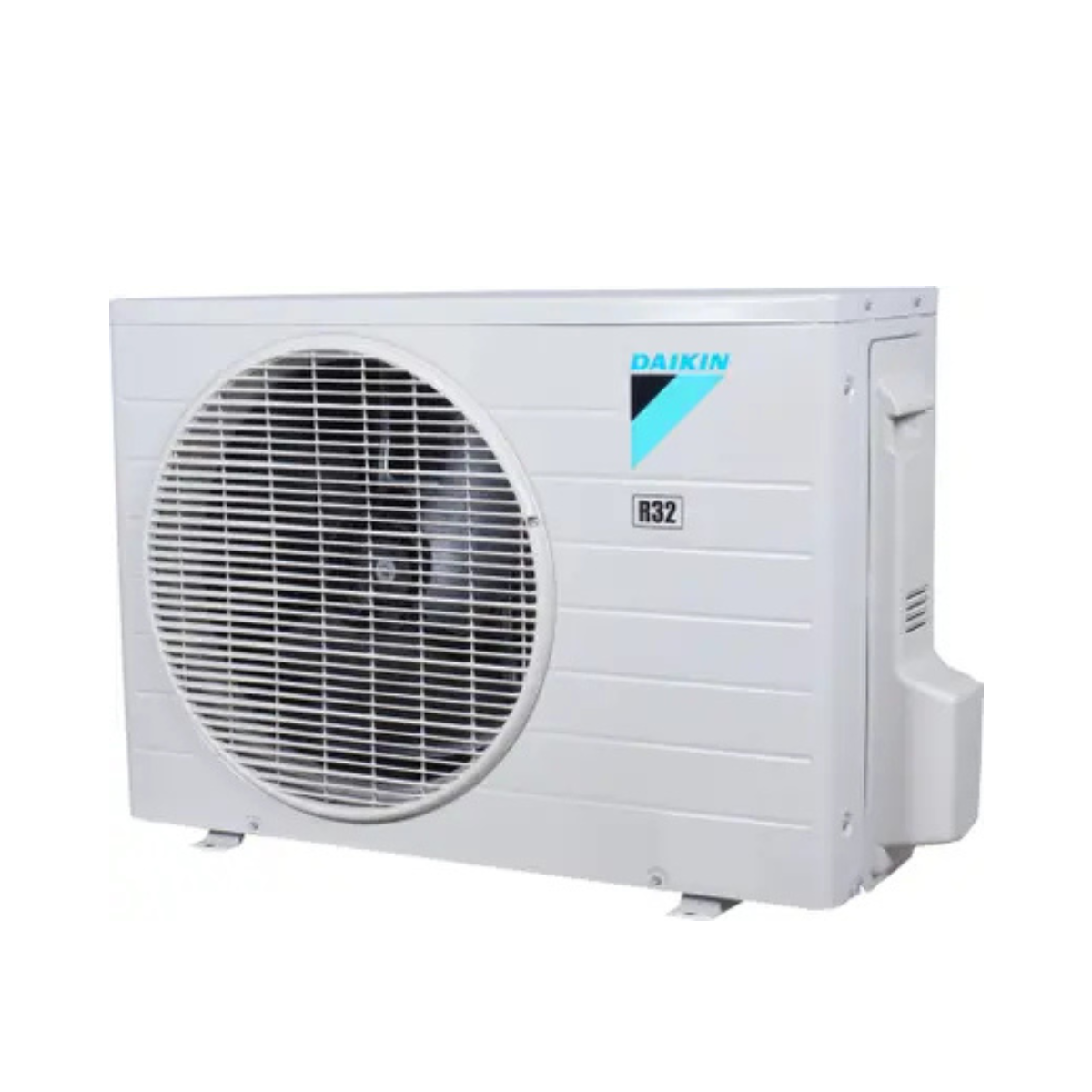

Outdoor Unit (ODU):
| Specification | Unit | Value |
|---|---|---|
| Dimensions (HxWxD) | mm | 695 x 930 x 350 |
| Package Dimensions (HxWxD) | mm | 775 x 1094 x 486 |
| Net Weight (Gross Weight) | kg | 47.5 (55.5) |
| Compressor Type | — | Swing Compressor |
| Refrigerant | — | R-32 |
| Breaker Size | A | 20 |
| Piping Length (Charge-less / Max / Height) | m | 10 / 25 / 20 |
| Piping Connection (Gas/Liquid) | mm (Inch) | Φ12.7 / φ9.52 (1/2” / 3/8”) |
| Operating Ambient Temperature Range | °C DB | 20~52 |
