General Specification:
| Feature | Specification |
|---|---|
| Model Name (IDU / ODU) | FTKL60UV16U / RKL60UV16U |
| Star Rating | 3 Star |
| Rated Power Supply | 1Ø / 50Hz / 230V |
| Power Supply Intake | Outdoor Unit |
| Cooling Capacity (Full / Half) | 6.0 / 3.0 kW (Min–Max: 1.75–6.5 kW) |
| Cooling Capacity (Btu/h) | 20470 / 10235 (Min–Max: 5970–22180) |
| Cooling Capacity @ 43°C | 100% |
| Power Consumption (Full / Half) | 1950 / 683 W (Min–Max: 350–2100 W) |
| Annual Power Consumption | 1161.78 kWh |
| ISEER Rating | 4.00 |
| Voltage Range (Stabilizer Inside) | 130–285 V |
| Operating Current | 8.65 A |

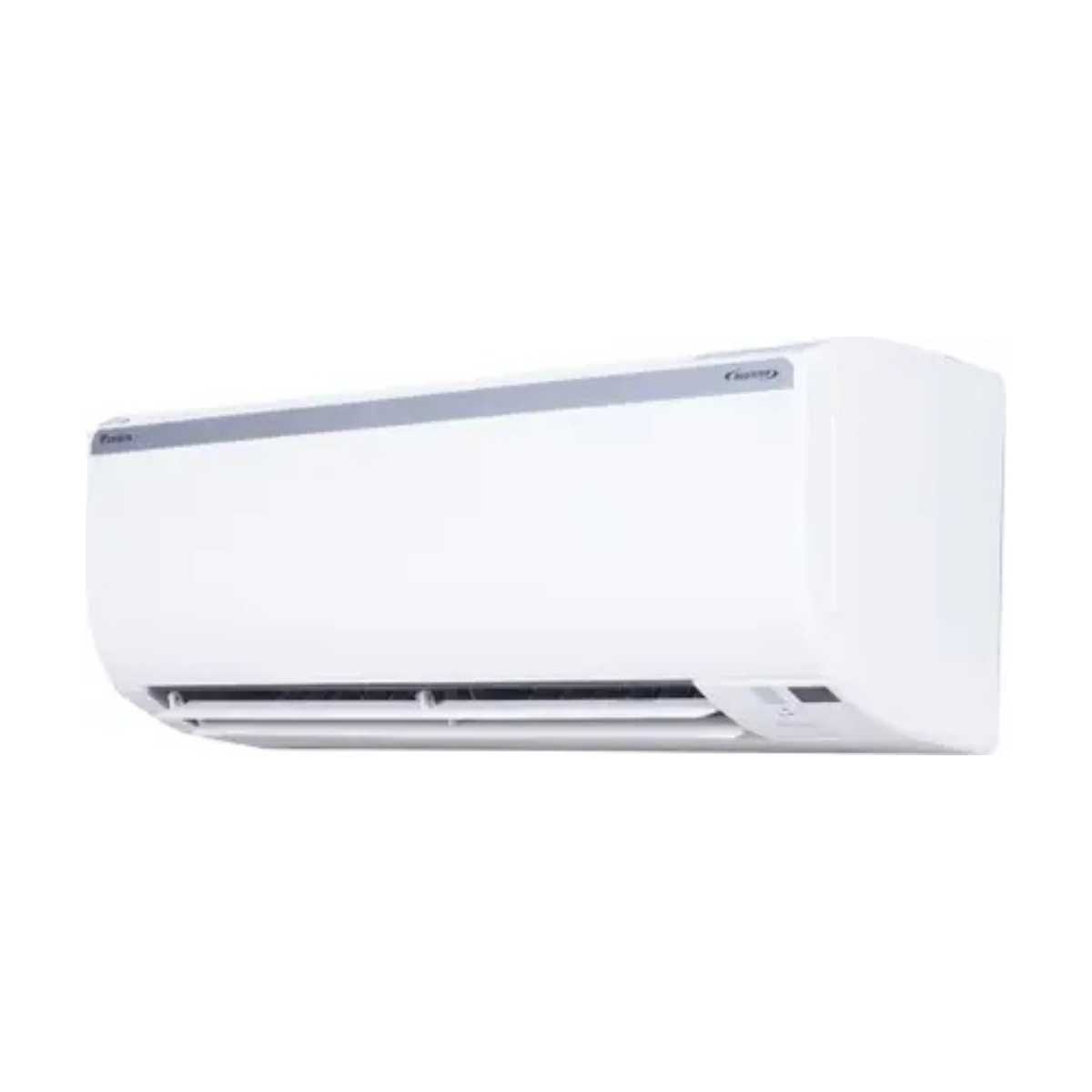

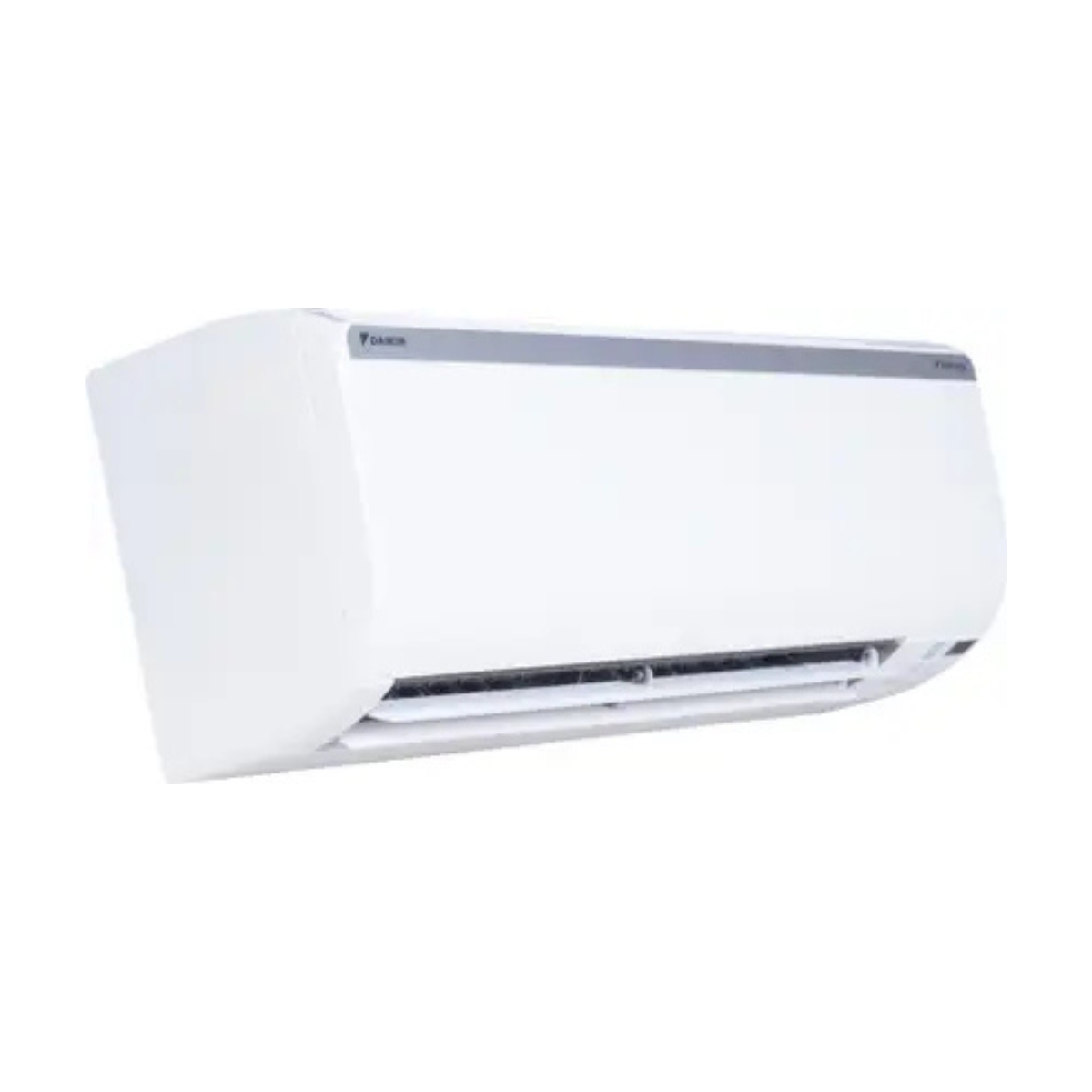

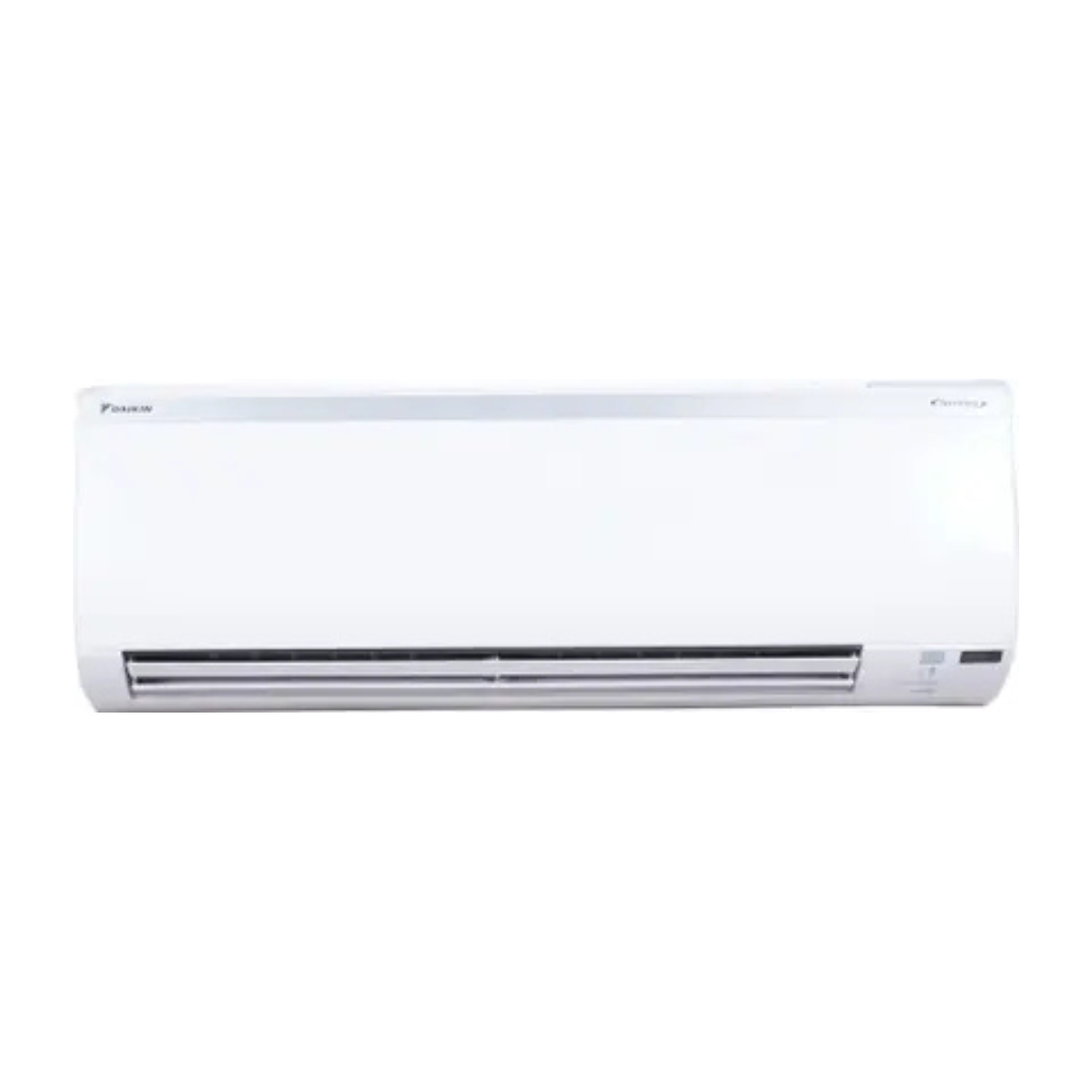

Indoor Unit (IDU):
| Feature | Specification |
|---|---|
| Panel Colour | White |
| Dimensions (HxWxD) | 298 x 885 x 229 mm |
| Package Dimensions (HxWxD) | 375 x 980 x 325 mm |
| Net/Gross Weight | 11 kg / 14 kg |
| Airflow Rate | 593 cfm / 16.8 cmm |
| Moisture Removal | 2.3 Litres/hour |
| Sound Levels (H/MH/M/ML/L/SL) | 48 / 46 / 43 / 41 / 38 / 32 dBA |

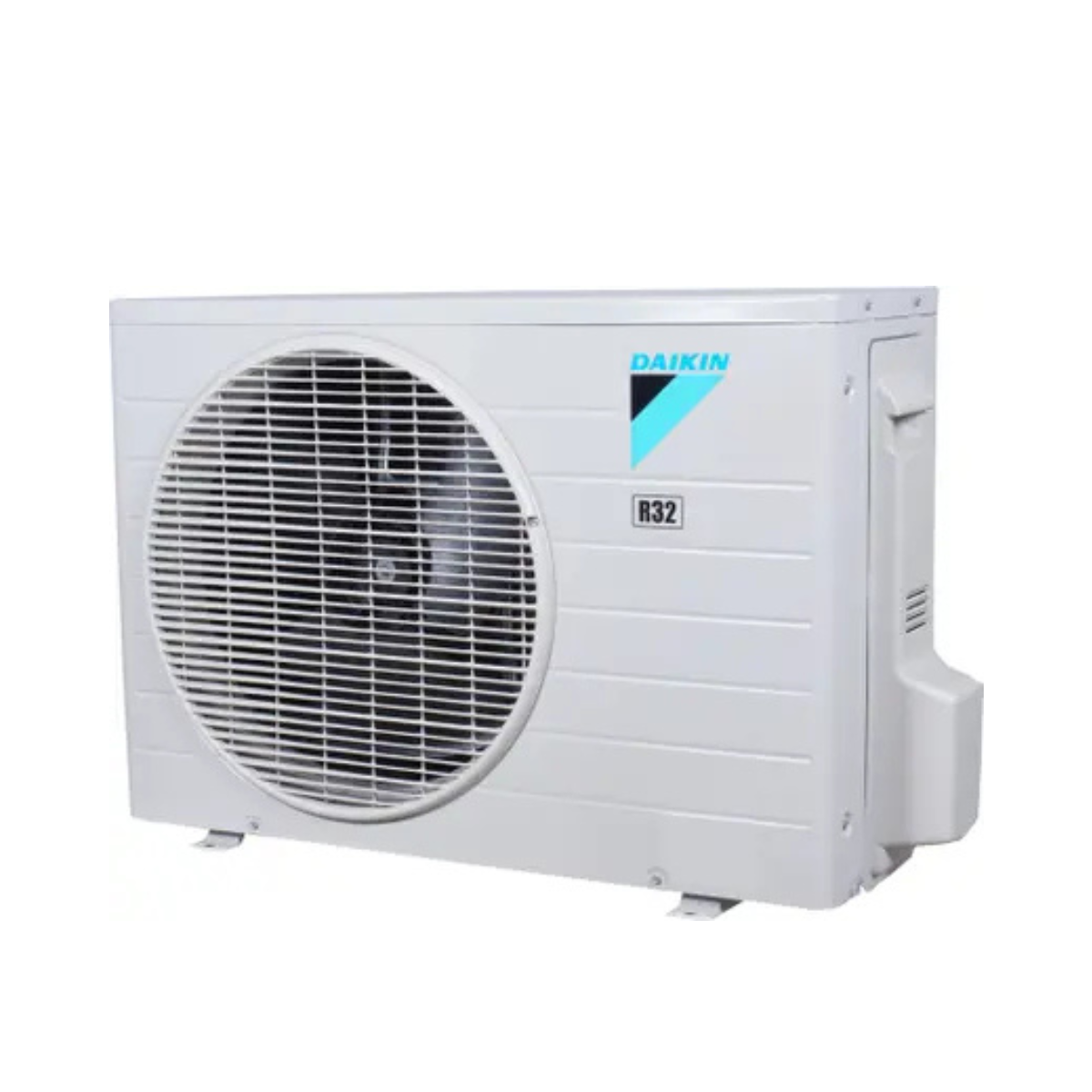

Outdoor Unit (ODU):
| Feature | Specification |
|---|---|
| Dimensions (HxWxD) | 595 x 845 x 300 mm |
| Package Dimensions (HxWxD) | 680 x 1035 x 410 mm |
| Net/Gross Weight | 33.5 kg / 40 kg |
| Compressor Type | Swing Compressor |
| Refrigerant | R-32 |
| Breaker Size | 20 A |
| Piping Length (Charge-less) | 10 m |
| Piping Length (Max Length / Height) | 25 m / 20 m |
| Piping Connection (Gas/Liquid) | Ø12.7 / Ø6.4 mm (1/2″ / 1/4″) |
| Operating Temperature Range | 20°C – 52°C (Cooling) |
