Basic Specifications:
| Category | Specification | Details | Value |
|---|---|---|---|
| Model Info | Indoor Unit (IDU) | FTKC35UV16W/W3* | |
| Outdoor Unit (ODU) | RKC35UV16W/W3* | ||
| Energy Rating | Star Rating | 3 Star (BEE Certified) | |
| Electrical | Power Supply | Phase/Frequency/Voltage | 1φ 50Hz 230V (220-240V) |
| Power Intake | Outdoor Unit | ||
| Operating Current (Cooling) | 5.43A | ||
| Voltage Range | Stabilizer Inside (Cooling) | 130~285V | |
| Performance | Cooling Capacity (kW) | Full/Half (min~max) | 3.52/1.76 (1.07~3.7) |
| Cooling Capacity (Btu/h) | Full/Half (min~max) | 12,000/6,000 (3,650~12,600) | |
| Power Consumption (W) | Full/Half (min~max) | 1,200/383 (210~1,200) | |
| Annual Consumption | 680.40 kWh | ||
| Energy Efficiency | ISEER Rating | 4.0 Wh/Wh |

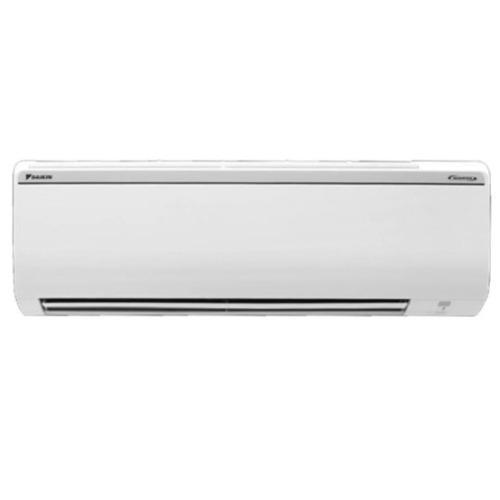

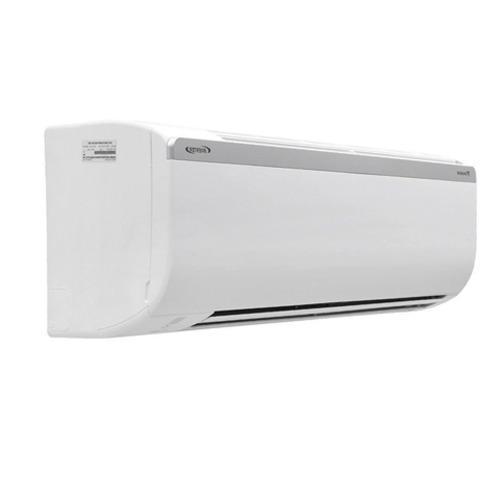

Indoor Unit Specifications:
| Specification | Value |
|---|---|
| Color | White |
| Dimensions | Unit: 298×800×229 mm |
| Package: 375×895×325 mm | |
| Weight | Net: 9.5 kg (Gross: 12.5 kg) |
| Airflow Rate | 473 CFM / 13.4 m³/min |
| Noise Levels | Cooling: 40/36/32/29/26 dBA (H/MH/M/ML/L/SL) |

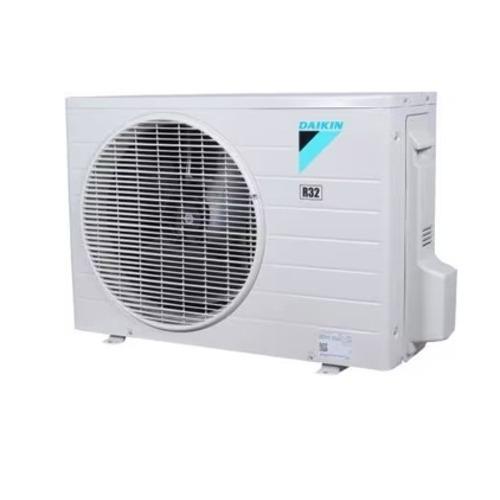

Outdoor Unit Specifications:
| Specification | Value |
|---|---|
| Dimensions | Unit: 550×675×284 mm |
| Package: 620×825×410 mm | |
| Weight | Net: 21.5 kg (Gross: 27 kg) |
| Compressor Type | Swing Compressor |
| Refrigerant | R-32 |
| Breaker Size | 15A |
| Piping | Charge-Free: 10m |
| Max Length: 15m | |
| Max Height: 12m | |
| Connections | Gas: Φ9.5 mm (3/8) |
| Liquid: φ6.4 mm (1/4) | |
| Operating Range | Cooling: 20~52°C DB |
